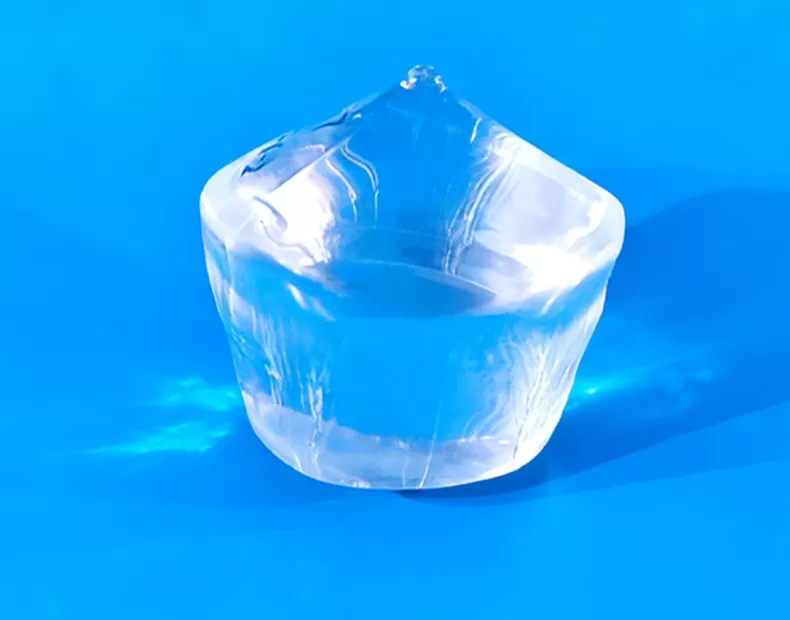

α-BBO
- α-BBO is a negative uniaxial crystal. It has large birefringence and high transmittance within the broad transmission range of 189 nm ~ 3500 nm. Its physical, chemical, thermal and optical properties are similar to β-BBO.
- α-BBO performs better than YVO₄ and other synthetic crystals in the ultraviolet band. Anti-reflection coating and moisture-proof control are required for practical use.
Features
• Negative uniaxial optical crystal
• Large birefringence
• High transmittance over wide spectral range
• Excellent performance in UV wavelength band
• Properties similar to β-BBO crystal
• Custom dimensions, polishing and coating available
Application
Polarizers, ultraviolet optical components, laser beam splitting, UV laser systems and polarization-related optical applications.
Specifications
• Optical Component: α-BBO Crystal
• Crystal Type: Negative uniaxial crystal
• Transmission Range: 189 nm - 3500 nm
• Surface Quality: 20-10 Scratch-Dig
• Surface Figure: λ/8
• Dimension Tolerance: +0.0 / -0.1 mm
• Clear Aperture: >90% of aperture
• Coating Options: Uncoated / AR coating / Broadband AR
• Size Range: 3 mm - 25 mm
